Combined Taping Machine – Multi Conductors

Short Description:

Combined taping machine for multi-conductors is our continuous development on horizontal taping machine for single conductor. 2,3 or 4 taping units could be customized in one combined cabinet. Each conductor simultaneously goes through taping unit and is taped respectively in the combined cabinet, then the taped conductors are gathered and taped to be one combined conductor.


Product Detail

Product Tags

Main technical data

Single wire quantity: 2/3/4 (or customized)
Single wire area: 5 mm²—80mm²
Rotating speed: max. 1000 rpm
Line speed: max. 30 m/min.
Pitch accuracy: ±0.05 mm
Taping pitch: 4~40 mm, step less adjustable

Special Characteristics

-Servo drive for the taping head
-Rigid and modular structure design to eliminate vibration interaction
-Taping pitch and speed easy adjusted by touch screen
-PLC control and touch screen operation

Double Twist Bunching Machine03

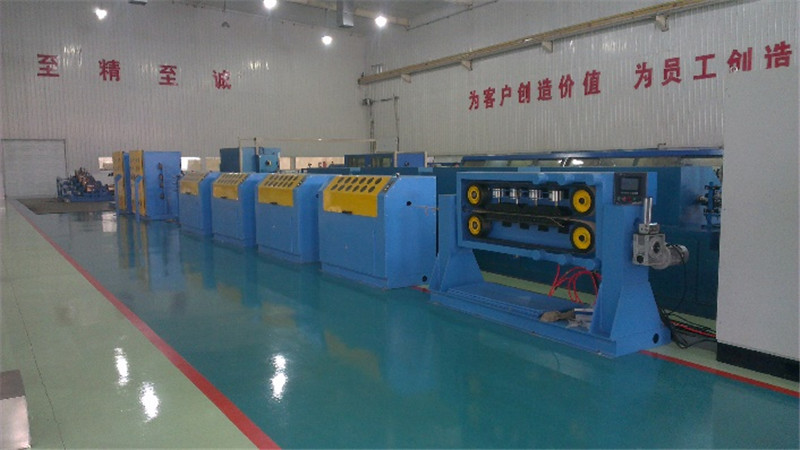

Overview

Double Twist Bunching Machine04

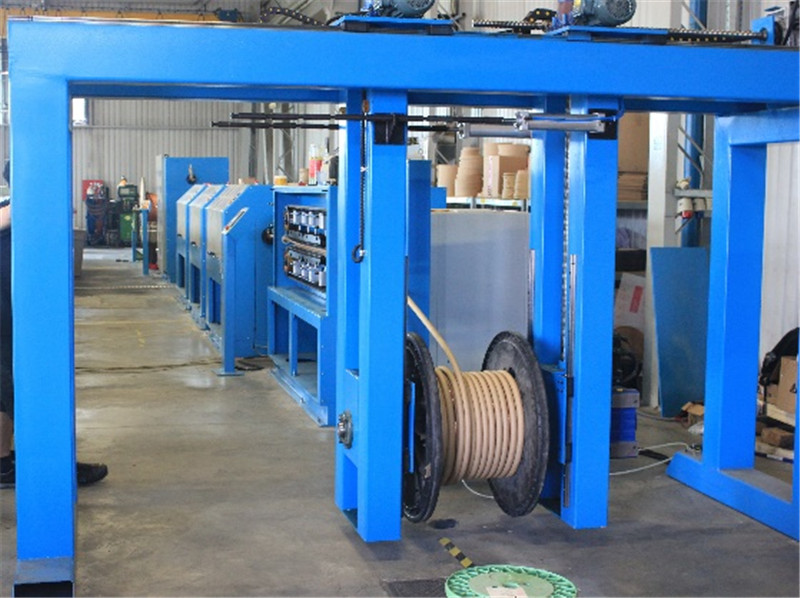

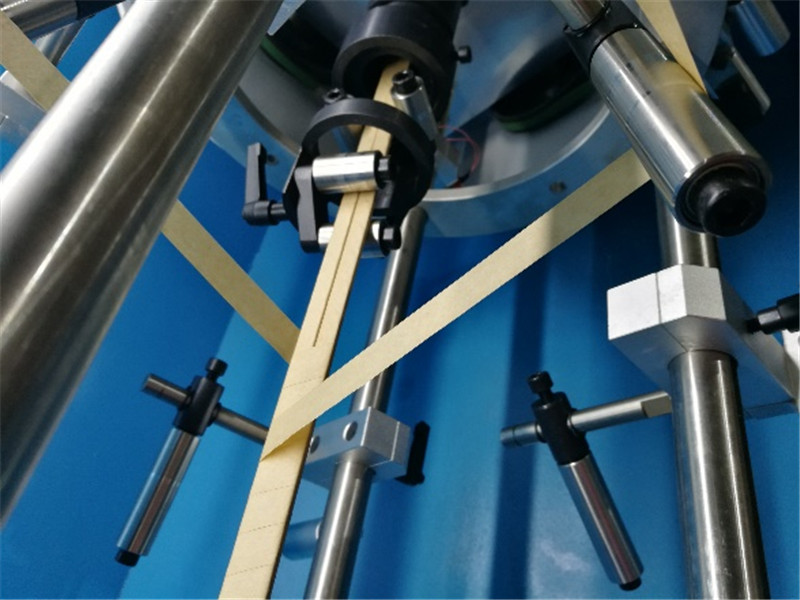

Taping

Double Twist Bunching Machine02

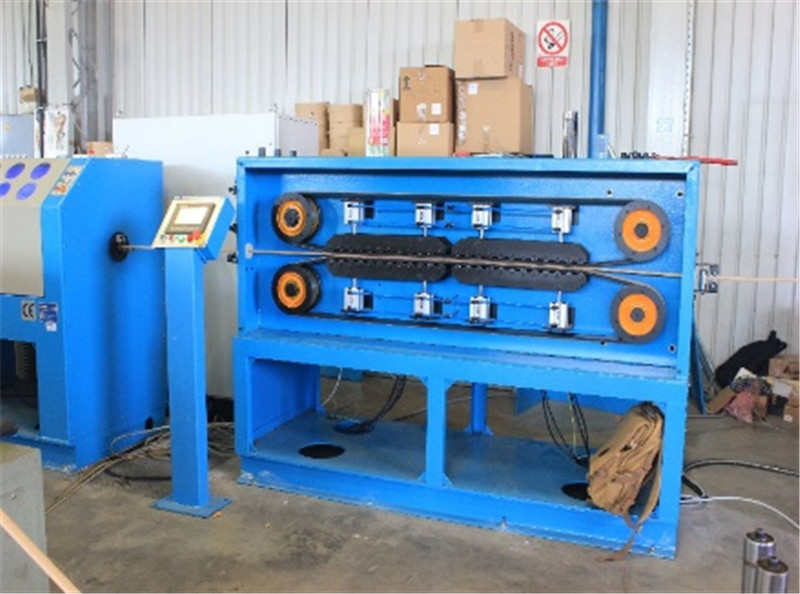

Caterpillar
