Horizontal Taping Machine-Single Conductor

Short Description:

Horizontal taping machine is used to make insulating conductors. This machine is suitable for tapes made of different materials, such as paper, polyester, NOMEX and mica. With years of experience on horizontal taping machine design and manufacturing, we developed the latest tapping machine with characters of high quality and high rotating speed up to 1000 rpm.


Product Detail

Product Tags

Main technical data

Conductor area: 5 mm²—120mm²(or customized)
Covering layer: 2 or 4 times of layers
Rotating speed: max. 1000 rpm
Line speed: max. 30 m/min.
Pitch accuracy: ±0.05 mm
Taping pitch: 4~40 mm, step less adjustable

Special Characteristics

-Servo drive for the taping head
-Rigid and modular structure design to eliminate vibration interaction
-Taping pitch and speed easy adjusted by touch screen
-PLC control and touch screen operation

Horizontal Taping Machine-Single Conductor03

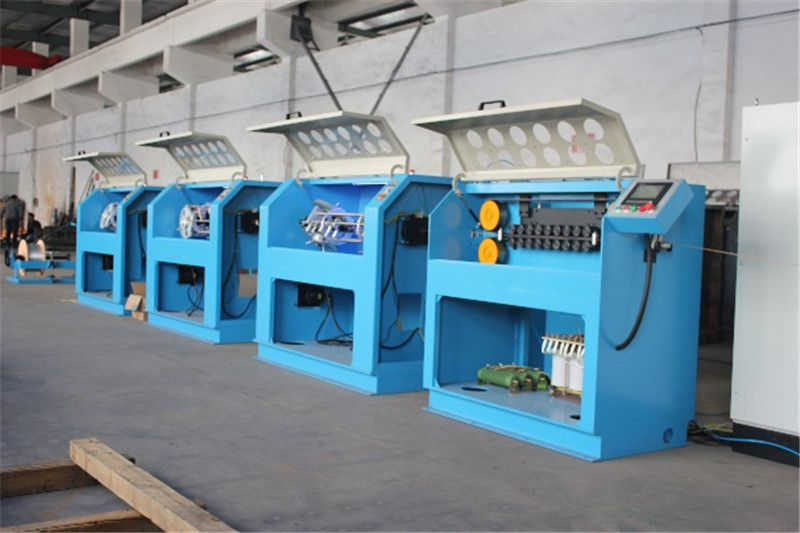

Overview

Horizontal Taping Machine-Single Conductor04

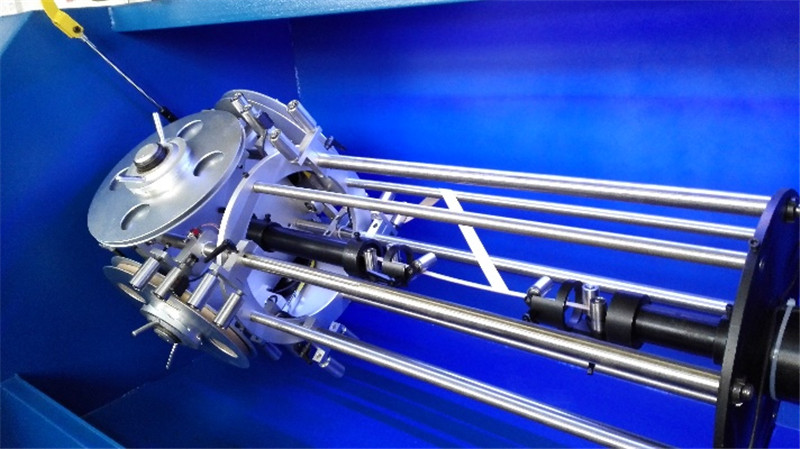

Taping head

Horizontal Taping Machine-Single Conductor05

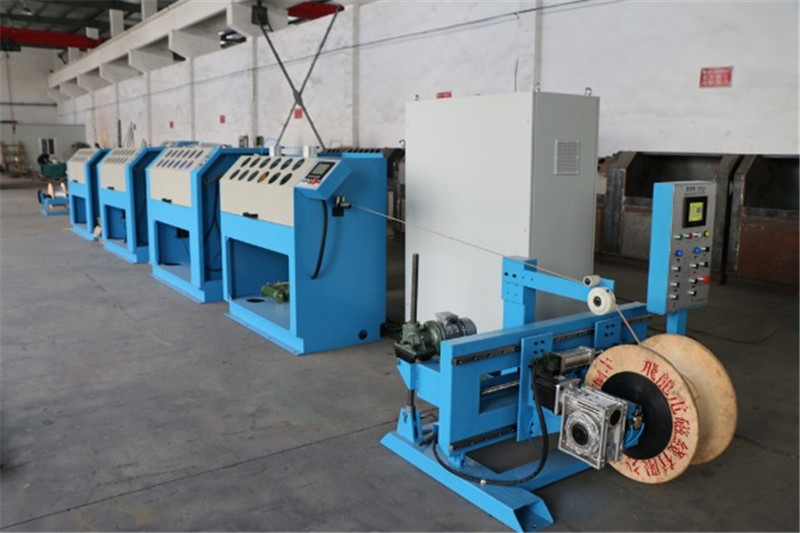

Caterpillar

Horizontal Taping Machine-Single Conductor02

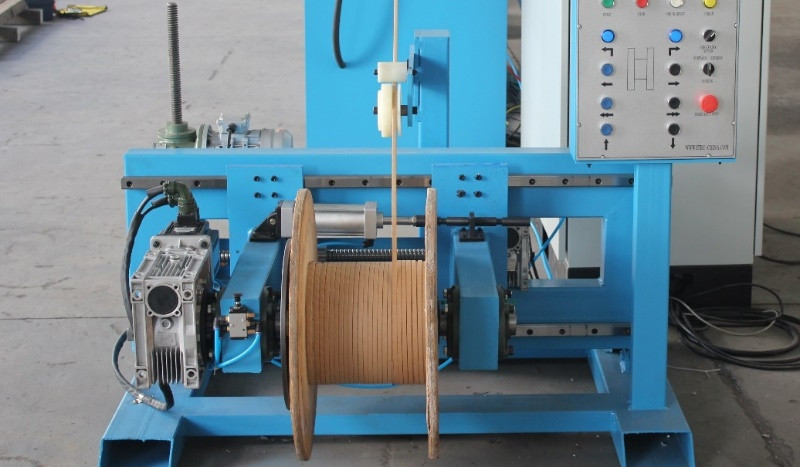

 Take-up
