Fiber Glass Insulating Machine

Short Description:

The machine is designed to produce fiberglass insulating conductors. Fiber glass yarns are winded to conductor firstly and insulating varnish is applied subsequently, then the conductor will be solidly combined by radiant oven heating. The design complies with market requirements and adopts our long-lasting experience in the field of fiberglass insulating machine.


Product Detail

Product Tags

Main technical data

Round conductor diameter: 2.5mm—6.0mm
Flat conductor area: 5mm²—80 mm²(Width: 4mm-16mm, Thickness: 0.8mm-5.0mm)
Rotating speed: max. 800 rpm
Line speed: max. 8 m/min.

Special Characteristics

Servo drive for the winding head
Auto-stop when fiberglass broken
Rigid and modular structure design to eliminate vibration interaction
PLC control and touch screen operation

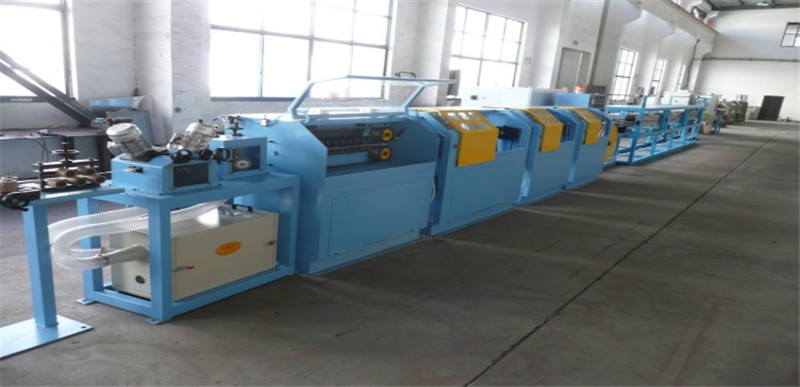

Fiber Glass Insulating Machine (2)

Overview

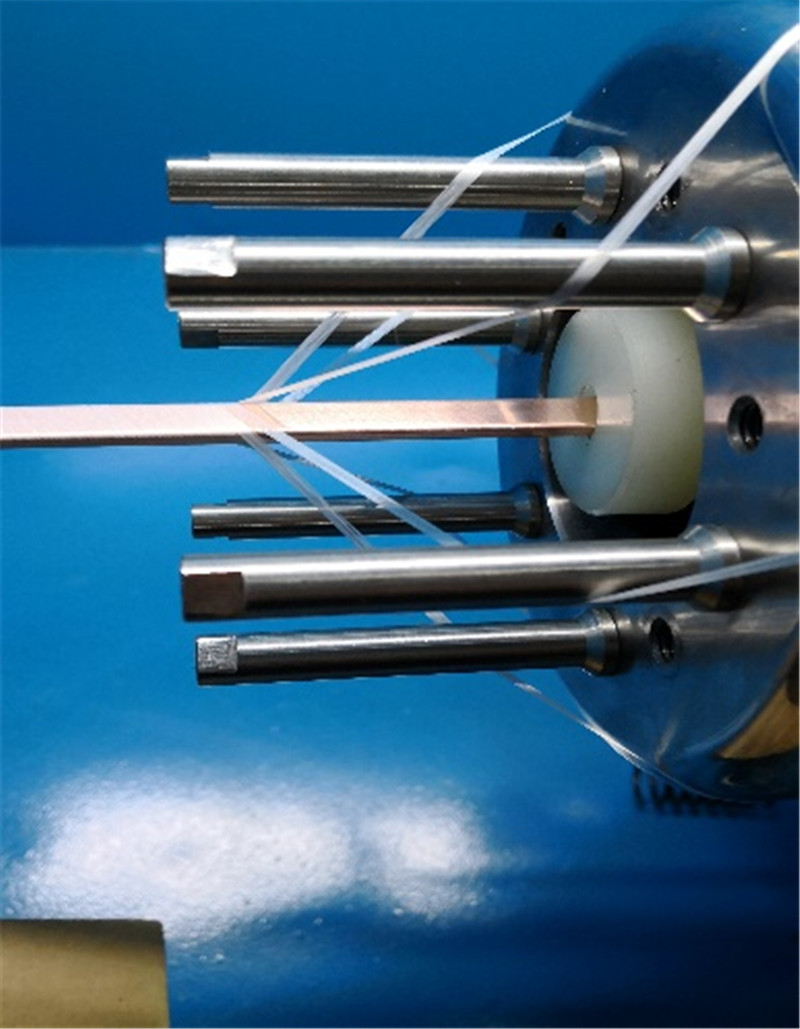

Fiber Glass Insulating Machine (5)

Taping

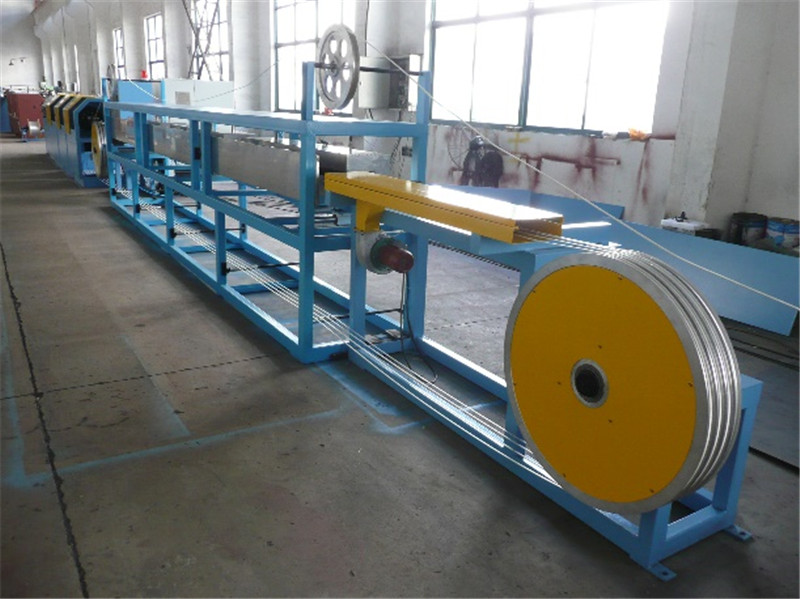

Fiber Glass Insulating Machine (3)

Oven

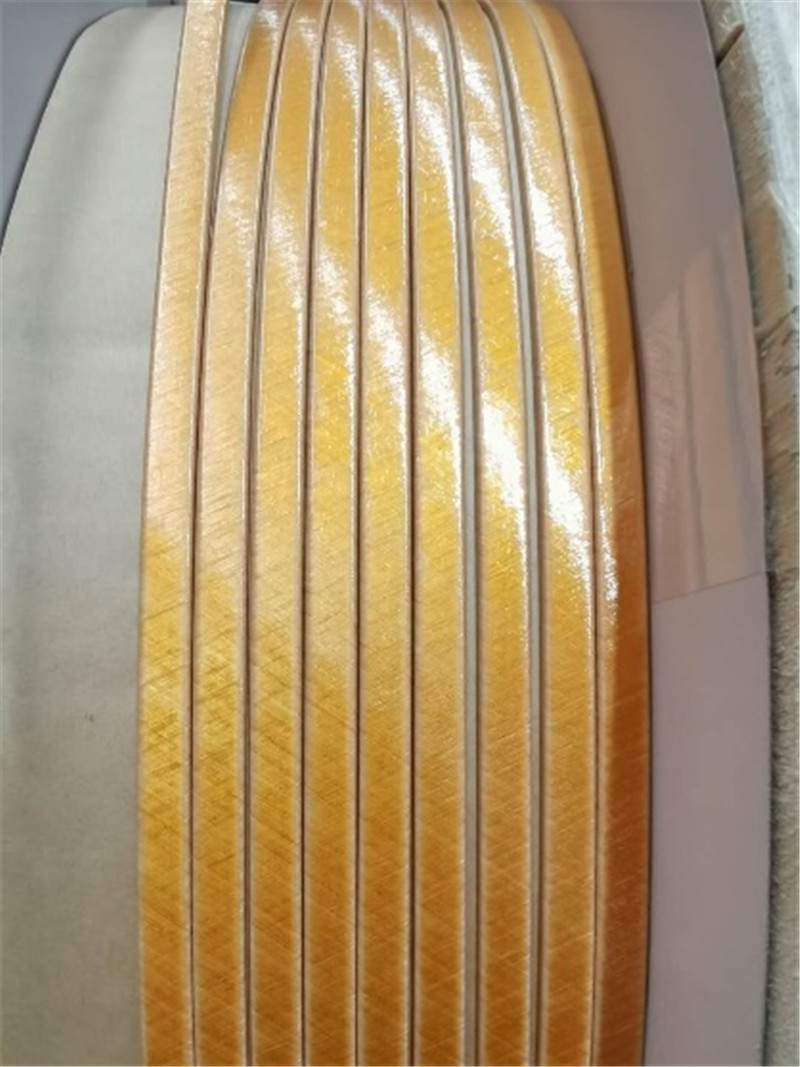

Fiber Glass Insulating Machine (1)

Product
