PI Film/Kapton® Taping Machine

Short Description:

Kapton® taping machine is designed specially to insulate round or flat conductors by applying Kapton® tape. Combination of taping conductors with thermal sintering process by heating the conductor from inside (IGBT induction heating) as well as from outside (Radiant oven heating), so that the good and consistent product will be made.


Product Detail

Product Tags

Main technical data

Round conductor diameter: 2.5mm—6.0mm
Flat conductor area: 5 mm²—80 mm²(Width: 4mm-16mm, Thickness: 0.8mm-5.0mm)
Rotating speed: max. 1500 rpm
Line speed: max. 12 m/min

Special Characteristics

-Servo drive for the concentric tapping head
-IGBT induction heater and moving radiant oven
-Auto-stop when film broken
-PLC control and touch screen operation

Kapton® Taping Machine (2)

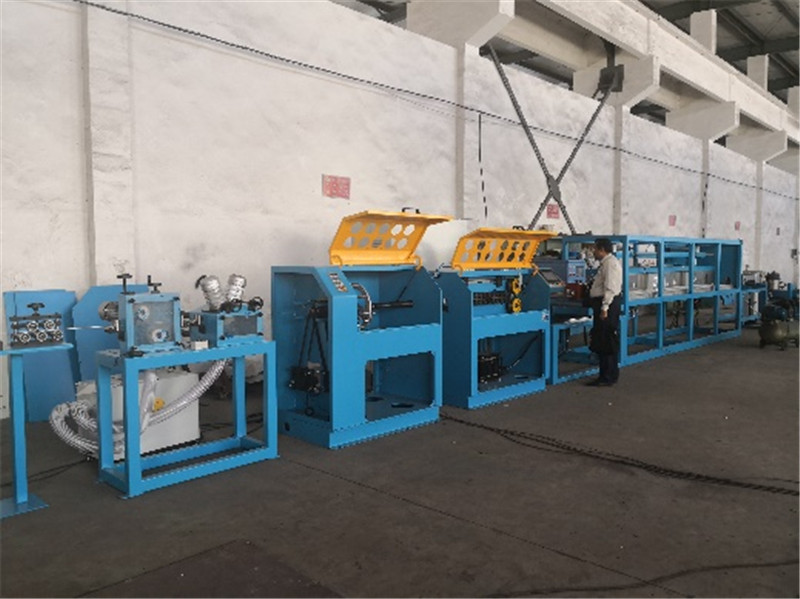

Overview

Kapton® Taping Machine (7)

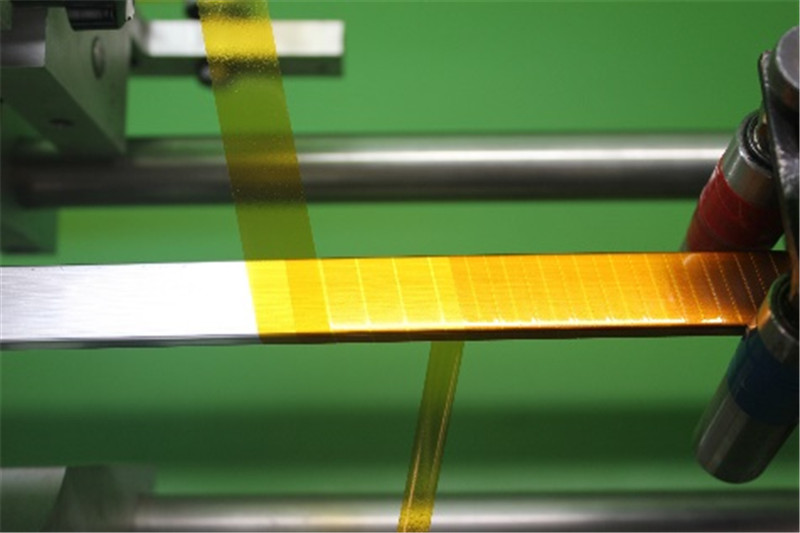

Taping

Kapton® Taping Machine (4)

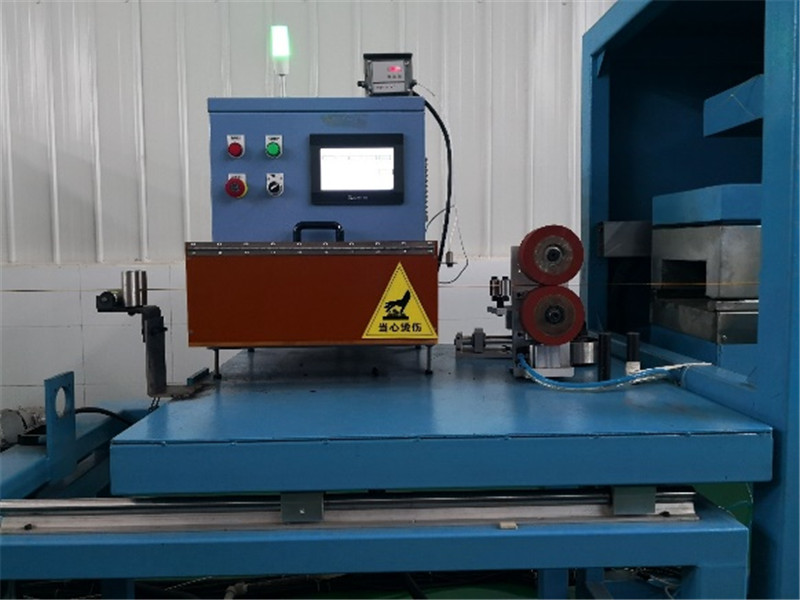

IGBT Induction heater

Kapton® Taping Machine (5)

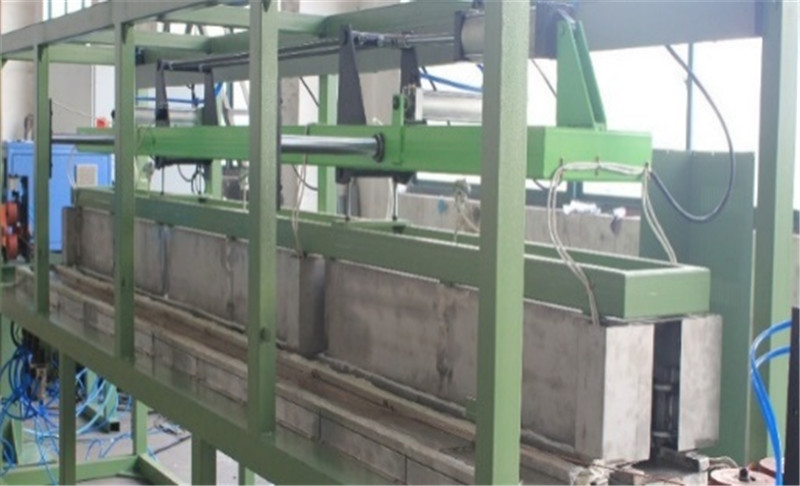

Radiant oven

Kapton® Taping Machine (1)

Take-up

Kapton® Taping Machine (6)

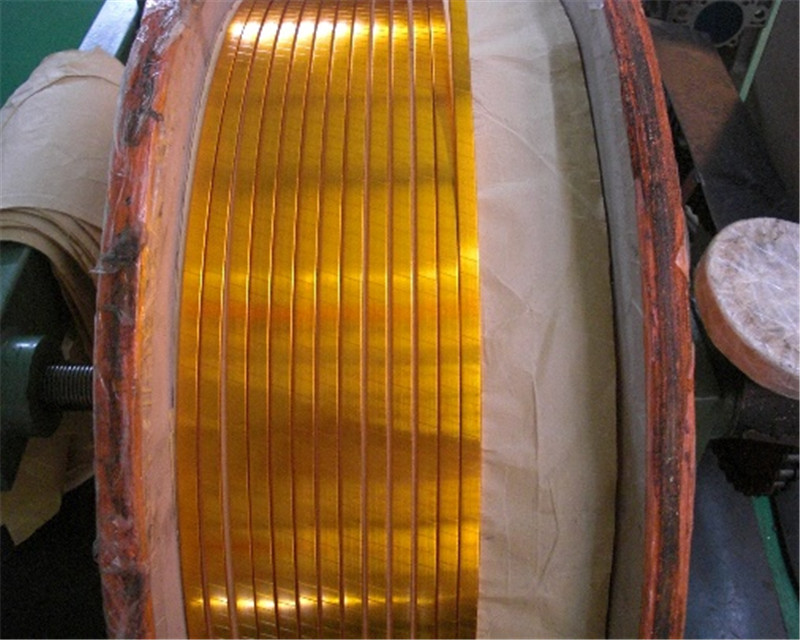

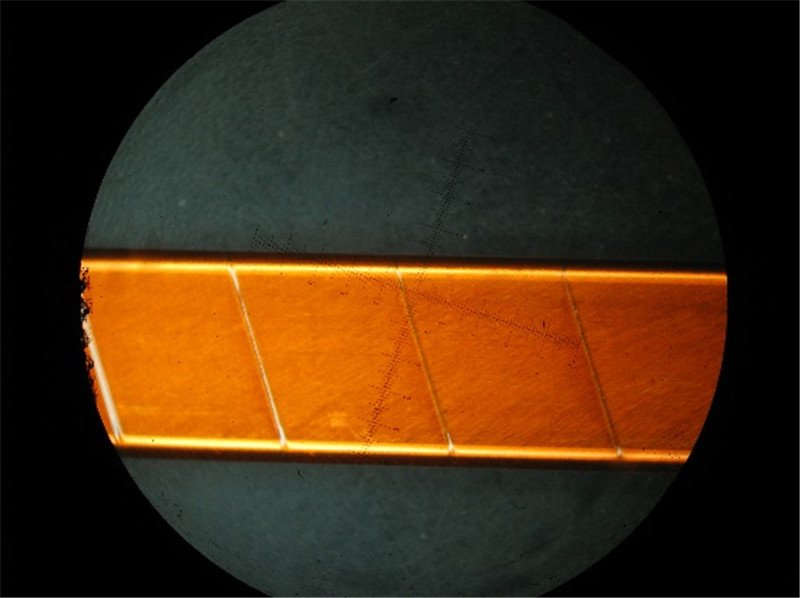

Product
